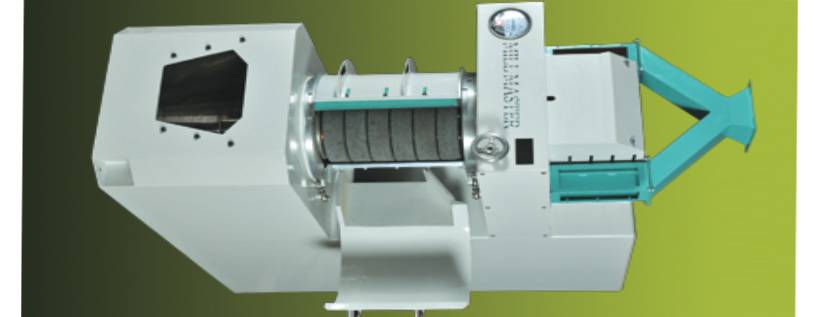

This machine is designed to polish the brown rice with less broken and to remove the bran. This machine is equipped with vertical alignment of silicon carbide grinding wheels and CNC punched sieves with adjustable frames, spring controlled polish adjustment for easy operation, stainless steel discharge and exhaust connection for bran suction. The brown rice is subjected to parallel friction between grinding wheels and sieves to remove the thin layer of bran with required whitening of rice by 2 or 3 passes of polishing for normal rice and 4 passes for basmati long grains.
S.N | MODEL | CAPACITY | POWER REQUIRED | VOLTAGE | NO. OF GRINDING WHEELS | TYPE OF GRINDING WHEEL | M/C SIZE (LxBxH) | APPROX WEIGHT |
1 | WHTNR -3T | 2 – 3 TPH | Motor-20hp/15kw-960RPM | 415v / 50 hz | 6 | 16, 24, 30, 36 grit | 1350X580x1450 | 700 KG |
Motor-30hp/22.5kw-1440RPM | ||||||||
2 | WHTNR-4T | 4 TPH | Motor-40hp/30kw-1440RPM | 415v / 50 hz | 6 | 16, 24, 30, 36 grit | 1450x700x1430 | 845 KG |
3 | MEGA-6T | 5 – 6 TPH | Motor-50hp/37.5kw-1440RPM | 415v / 50 hz | 7 | 16, 24, 30, 36 grit | 1650x750x1750 | 1350 KG |
Motor-60hp/45kw-1440RPM |
