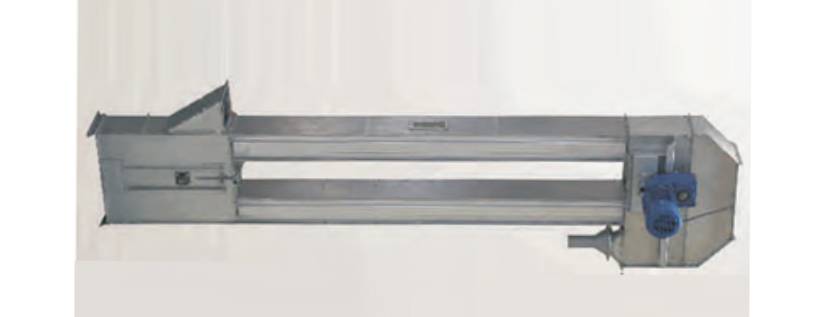

This bucket elevator is designed to vertical conveying the material from one machine to other machine for different processes from cleaning section to final packing section. This machine is equipped with food grade belt, finger gripped pulleys, different sizes of buckets for different capacities.
S.N | MODEL | CAPACITY | POWER REQUIRED | VOLTAGE | HEIGHT |
1 | ELE-5″ | 3-4 TPH | Grd Motor-1hp/0.75kw-100rpm | 415v / 50 hz | 15′ to 40′ feet |
2 | ELE-6″ | 5-6 TPH | Grd Motor-1.5hp/1.1kw-100rpm | 415v / 50 hz | 15′ to 40′ feet |
3 | ELE-8″ | 7-8 TPH | Grd Motor-2hp/1.5kw-100rpm | 415v / 50 hz | 15′ to 40′ feet |
4 | ELE-10″ | 9-10 TPH | Grd Motor-3hp/2.2kw-100rpm | 415v / 50 hz | 15′ to 40′ feet |
